PEEK Complete Size & Specification Reference | Tangtaweesub Engineering Co., Ltd.

Full Specifications

Sizes & Dimensions by Product Family คลิกรหัสในแถบด้านบนเพื่อข้ามไปยังกลุ่มสินค้าที่ต้องการ — ระบุวัสดุ ประเภทหัว และขนาดเมื่อขอใบเสนอราคา

ข้อมูลแรงบิดขันแน่น แรงดึงขาด และพื้นที่ใช้งานของวัสดุ PEEK ดูได้ที่หน้า Engineering Plastic Fasteners → PEEK ตารางด้านล่างนี้แสดงขนาดที่มีจำหน่ายจริงและ MOQ ต่อกลุ่มสินค้า ค่าในตารางใช้เพื่ออ้างอิง มิใช่ค่าที่รับประกัน

PEEK/J0Hexagon Head Bolt

สลักเกลียวหัวหกเหลี่ยม

11 sizes

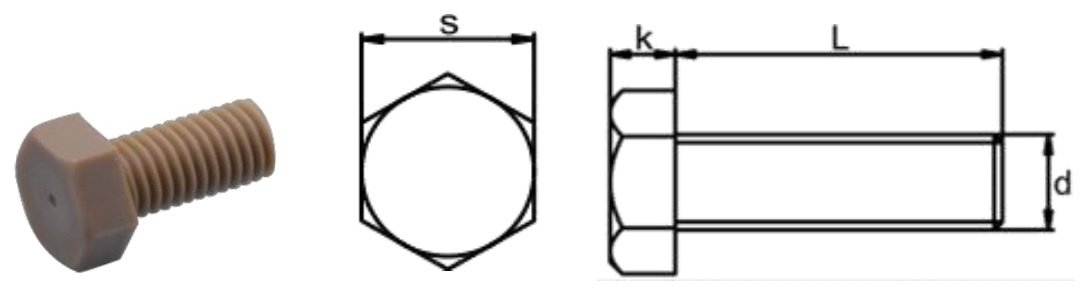

PEEK/J0 Hexagon Head Bolt — product photo and dimensional drawing

S = width across flats (mm) · K = head height (mm)

M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20

M	S	K	Available Lengths (mm)	MOQ
M3	5.35	2	6, 8, 10, 12, 16, 20, 25	100
M4	6.82	2.8	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	7.82	3.5	6, 8, 10, 12, 16, 20, 25, 30, 35, 60	100
M6	9.82	4	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	12.78	5.3	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100	50
M10	15.78	6.4	20, 25, 30, 40, 50, 65, 100, 110	50
M12	17.78	7.5	10, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110	50
M14	20.58	8.8	25, 30, 40, 50, 60, 65, 70, 80, 90, 100	25
M16	23.58	10	20, 30, 40, 50, 60, 65, 70, 80, 90, 100	25
M18	26.58	11.5	50, 100	25
M20	29.58	12.5	50, 100	25

PEEK/S0Hexagon Socket Head Screw

สกรูหัวหกเหลี่ยมจม

8 sizes

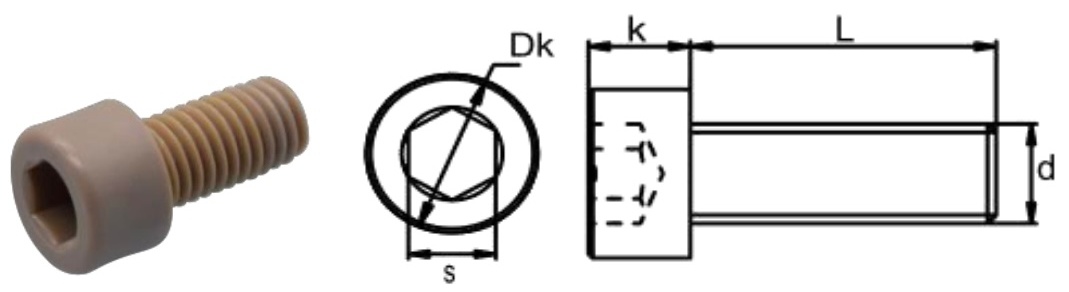

PEEK/S0 Hexagon Socket Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm) · S = hex key size (mm)

M2.5 M3 M4 M5 M6 M8 M10 M12

M	DK	K	S	Available Lengths (mm)	MOQ
M2.5	4.5	2.43	2.05	6, 8, 10, 12	100
M3	5.5	2.93	2.55	6, 8, 10, 12, 16, 20, 25	100
M4	7	3.91	3.05	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	8.5	4.91	4.06	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 50, 60	100
M6	10	5.85	5.08	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	13	7.82	6.08	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100	50
M10	16	9.82	8.1	20, 25, 30, 40, 45, 50, 55, 60, 65, 70, 100, 110	50
M12	17.87	11.79	10.1	25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80, 90, 100, 110	50

PEEK/SIHexagon Socket Countersunk Cap Screw

สกรูหัวเรียวจมหกเหลี่ยม

6 sizes

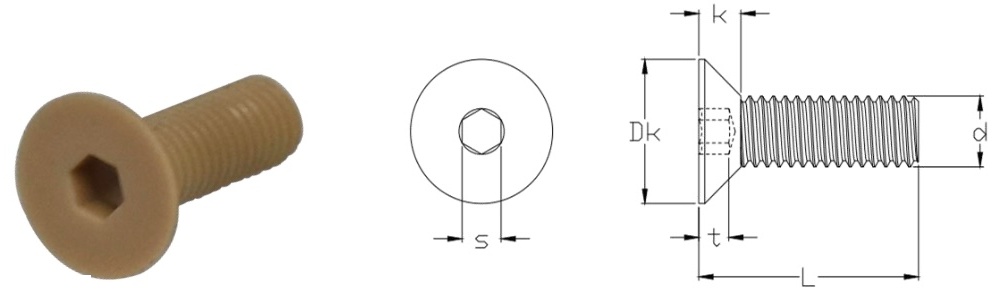

PEEK/SI Hexagon Socket Countersunk Cap Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height max (mm) · S = hex key size (mm)

M3 M4 M5 M6 M8 M10

M	DK	K (max)	S	Available Lengths (mm)	MOQ
M3	6.13	1.86	2.05	6, 8, 10, 12, 16, 20, 25	100
M4	8.25	2.48	2.55	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	10.32	3.1	3.05	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 50, 60	100
M6	12.39	3.72	4.06	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	16.58	4.96	5.08	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100	50
M10	20.81	6.2	6.08	20, 25, 30, 40, 45, 50, 55, 60, 65, 70, 100, 110	50

PEEK/STTorx Socket Head Screw

สกรูหัวทรงกระบอกหกแฉก (ทอร์กซ์)

5 sizes

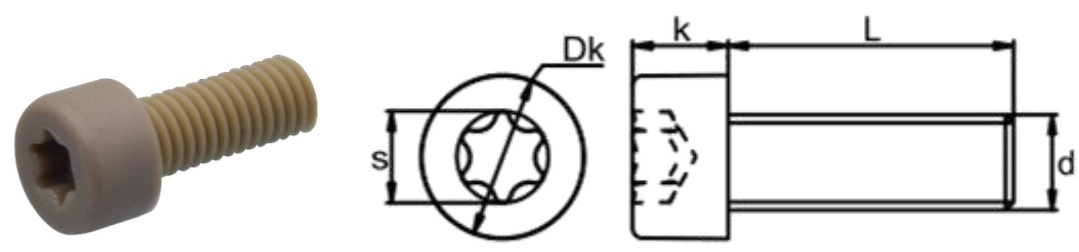

PEEK/ST Torx (Hex Lobular) Socket Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm)

M3 M4 M5 M6 M8

M	DK	K	Available Lengths (mm)	MOQ
M3	5.41	2.93	5, 6, 8, 10, 12, 16, 20, 25	100
M4	6.89	3.91	6, 8, 10, 12, 16, 20, 25, 30	100
M5	8.39	4.91	8, 10, 12, 16, 20, 25, 30	100
M6	9.89	5.85	8, 10, 12, 16, 20, 25, 30, 35, 40, 45	100
M8	12.87	7.82	20, 25, 30, 35, 40, 45, 50, 60, 65	50

PEEK/N0Slotted Pan Head Screw

สกรูหัวแบนร่องเดี่ยว

7 sizes

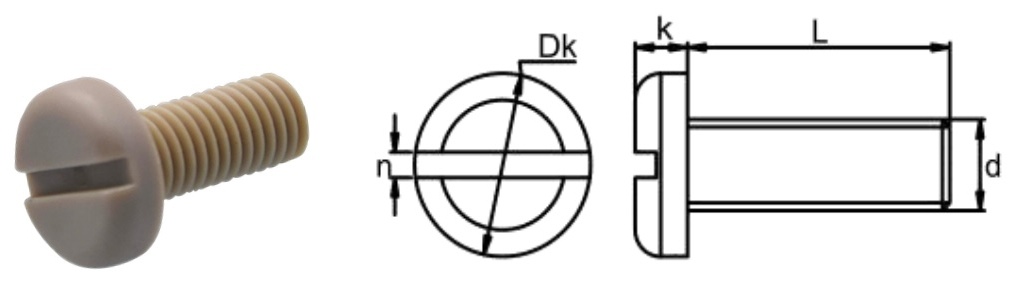

PEEK/N0 Slotted Pan Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm) · n = slot width (mm)

M2 M2.5 M3 M4 M5 M6 M8

M	DK	K	n	Available Lengths (mm)	MOQ
M2	3.85	1.2	0.63	6	100
M2.5	4.85	1.43	0.73	6, 8, 10, 12, 16	100
M3	5.45	1.73	0.93	4, 5, 6, 8, 10, 12, 16, 20, 25	100
M4	7.82	2.33	1.39	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	9.32	2.94	1.39	6, 8, 10, 12, 16, 20, 25, 30, 35, 60	100
M6	11.79	3.45	1.79	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	15.79	4.65	2.19	16, 20, 25, 30, 35, 40, 50, 65	50

PEEK/H0Slotted Countersunk Head Screw

สกรูหัวเรียวร่องเดี่ยว

7 sizes

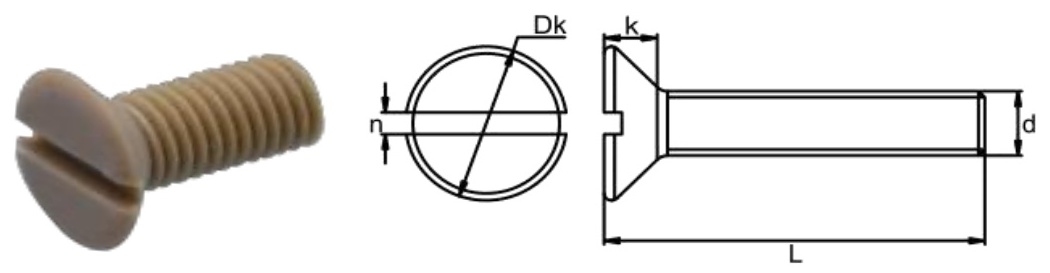

PEEK/H0 Slotted Countersunk Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm) · n = slot width (mm)

M2 M3 M4 M5 M6 M8 M10

M	DK	K	n	Available Lengths (mm)	MOQ
M2	3.65	1.2	0.63	10	100
M3	5.35	1.65	0.93	6, 8, 10, 12, 16, 20, 25	100
M4	8.22	2.7	1.39	8, 10, 12, 16, 20, 25, 30, 40, 50	100
M5	9.12	2.7	1.39	10, 12, 16, 20, 25, 30, 40, 50	100
M6	11.07	3.3	1.79	8, 10, 12, 16, 20, 25, 30, 35, 40, 50	100
M8	15.59	4.65	2.19	16, 20, 25, 30, 35, 40, 45	50
M10	18.04	5	2.69	20, 25, 30, 35, 40, 45, 50, 55, 60	50

PEEK/D0Slotted Cheese Head Screw

สกรูหัวทรงกระบอกร่องเดี่ยว

7 sizes

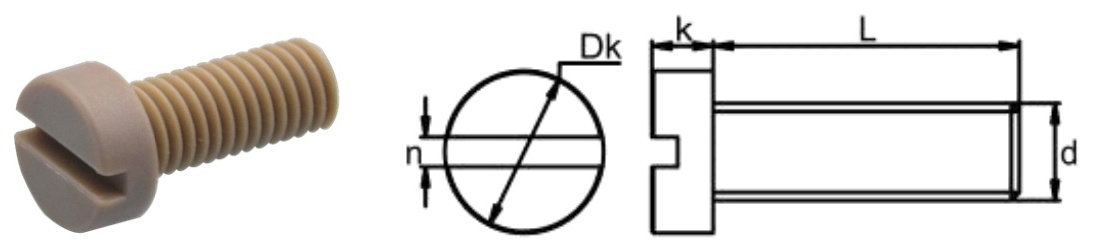

PEEK/D0 Slotted Cheese Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm) · n = slot width (mm)

M2 M3 M4 M5 M6 M8 M10

M	DK	K	n	Available Lengths (mm)	MOQ
M2	3.71	1.33	0.63	6, 8, 10, 16	100
M3	5.41	1.93	0.93	6, 8, 10, 12, 16, 20, 25	100
M4	6.89	2.53	1.39	6, 8, 10, 12, 16, 20, 25, 30, 40	100
M5	8.39	3.21	1.39	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 60	100
M6	9.89	3.75	1.79	8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	12.87	4.85	2.19	10, 12, 16, 20, 25, 30, 35, 40, 50, 60, 65	50
M10	15.87	5.85	2.69	20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100	50

PEEK/P0Cross Pan Head Screw

สกรูหัวแบนร่องกากบาท

10 sizes

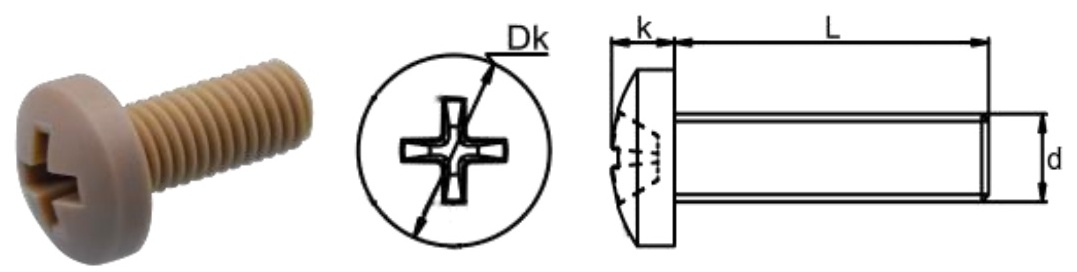

PEEK/P0 Cross Pan Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm)

M1.2 M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8

M	DK	K	Available Lengths (mm)	MOQ
M1.2	1.8	0.5	2, 4	100
M1.4	2	0.5	2, 4, 6	100
M1.6	2.3	0.5	2, 4, 6	100
M2	3.85	1.53	6, 8	100
M2.5	4.85	2.03	6, 8, 10, 12	100
M3	5.45	2.33	6, 8, 10, 12, 16, 20, 25	100
M4	7.82	3.01	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	9.32	3.61	6, 8, 10, 12, 16, 20, 25, 30	100
M6	11.79	4.45	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45	100
M8	15.79	5.85	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65	50

PEEK/I0Cross Countersunk Head Screw

สกรูหัวเรียวร่องกากบาท

11 sizes

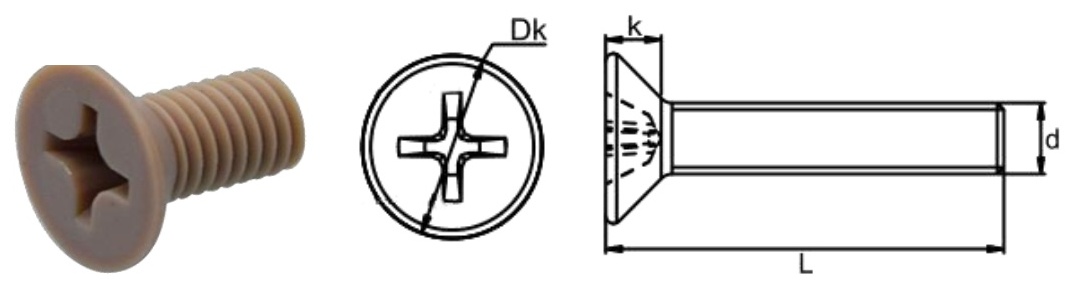

PEEK/I0 Cross Countersunk Head Screw — product photo and dimensional drawing

DK = head diameter (mm) · K = head height (mm)

M1.2 M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10

M	DK	K	Available Lengths (mm)	MOQ
M1.2	2.3	0.65	4	100
M1.4	2.5	0.74	4	100
M1.6	2.8	0.96	6	100
M2	3.65	1.2	5, 6	100
M2.5	4.55	1.5	6, 8	100
M3	5.35	1.65	4, 5, 6, 8, 10, 12, 16, 20	100
M4	8.22	2.7	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 50	100
M5	9.12	2.7	6, 8, 10, 12, 16, 20, 25, 30, 40, 50	100
M6	11.09	3.3	8, 10, 12, 16, 20, 25, 30, 40, 50	100
M8	15.59	4.65	16, 20, 30, 40, 45	50
M10	18.04	5	20, 30, 40	50

PEEK/R0Slotted Set Screw — Flat Point

สกรูยึดปลายแบนร่องเดี่ยว

7 sizes

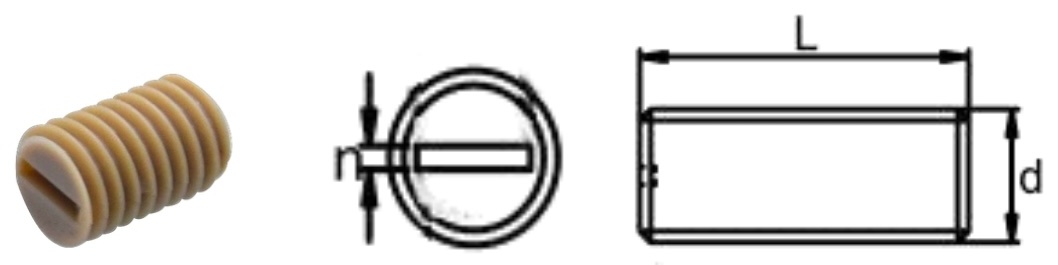

PEEK/R0 Slotted Set Screw (Flat Point) — product photo and dimensional drawing

n = slot width (mm)

M3 M4 M5 M6 M8 M10 M12

M	n	Available Lengths (mm)	MOQ
M3	0.53	6, 8, 10, 12, 16, 20, 25	100
M4	0.73	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	0.93	6, 8, 10, 12, 16, 20, 25, 30, 35, 60	100
M6	1.13	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	1.39	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100	50
M10	1.79	20, 25, 30, 40, 50, 65, 100, 110	50
M12	2.19	10, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110	50

PEEK/Q0Hex Socket Set Screw

สกรูยึดหกเหลี่ยมจม

8 sizes

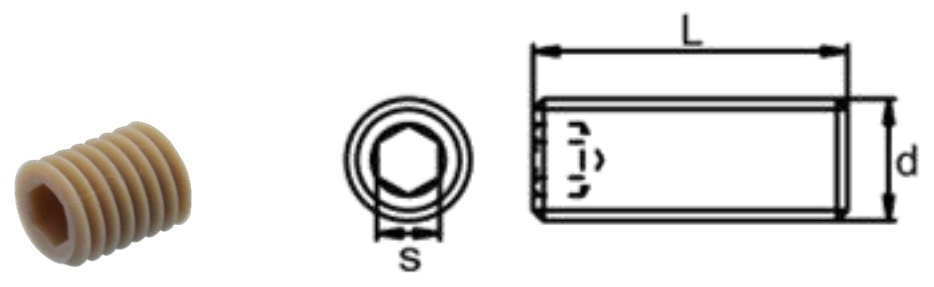

PEEK/Q0 Hex Socket Set Screw — product photo and dimensional drawing

S = hex key size (mm)

M3 M4 M5 M6 M8 M10 M12 M16

M	S	Available Lengths (mm)	MOQ
M3	1.55	6, 8, 10, 12, 16, 20, 25	100
M4	2.05	6, 8, 10, 12, 16, 20, 25, 30, 35	100
M5	2.55	6, 8, 10, 12, 16, 20, 25, 30, 35, 60	100
M6	3.05	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65	100
M8	4.06	10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 65, 70, 80, 90, 100	50
M10	5.08	20, 25, 30, 40, 50, 65, 100, 110	50
M12	6.08	10, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 110	50
M16	8.1	20, 30, 35	25

PEEK/HNHexagon Nut

น็อตหกเหลี่ยม

12 sizes

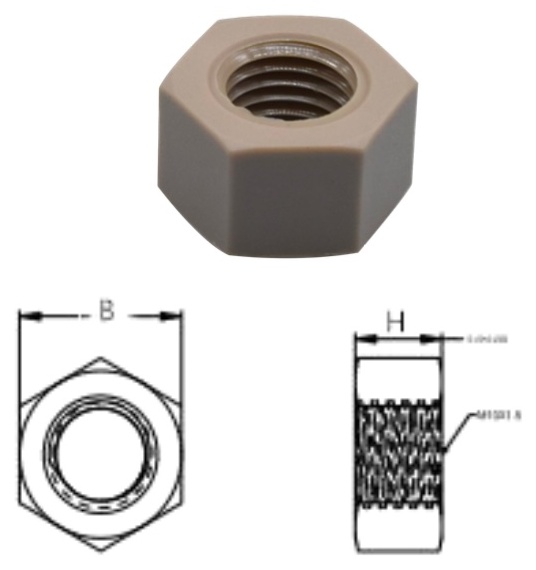

PEEK/HN Hexagon Nut — product photo and dimensional drawing

B = width across flats (mm) · H = nut height (mm)

M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20

M	B	H	MOQ
M2	3.91	1.47	100
M3	5.41	2.27	100
M4	6.89	3.05	100
M5	7.89	4.55	100
M6	9.89	5.05	100
M8	12.87	6.62	50
M10	15.87	8.22	50
M12	17.87	10.59	50
M14	20.84	12.45	25
M16	23.84	14.45	25
M18	26.58	15.45	25
M20	29.58	17.45	25

PEEK/W0Flat Washer

แหวนรองแบน

12 sizes

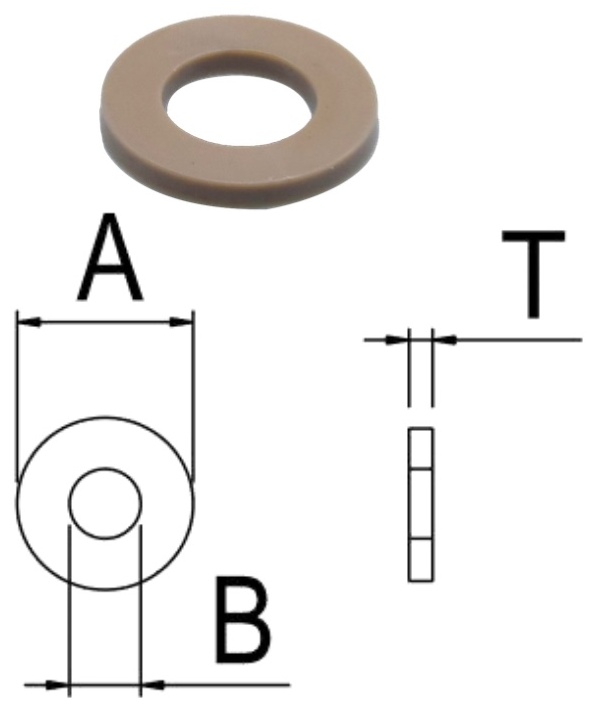

PEEK/W0 Flat Washer — product photo and dimensional drawing

A = outer diameter (mm) · B = inner diameter (mm) · T = thickness (mm)

M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20

M	A	B	T	MOQ
M2	4.85	2.27	0.3	100
M3	6.82	3.29	0.5	100
M4	8.82	4.39	0.8	100
M5	9.82	5.39	1	100
M6	11.78	6.51	1.6	100
M8	15.78	8.51	1.6	50
M10	19.74	10.64	2	50
M12	23.74	13.14	2.5	50
M14	27.74	15.14	2.5	25
M16	29.74	17.14	3	25
M18	33.69	19.17	3	25
M20	36.69	21.17	3	25

ไม่พบขนาดที่ต้องการ หรือต้องการไฟล์ PDF แคตตาล็อกฉบับเต็ม ติดต่อทีมงานได้ทันที — เรารับสั่งผลิตขนาดพิเศษ (custom size) ได้เช่นกัน
